You Shouldn’t Fix a PS5 Controller Without Knowing This First

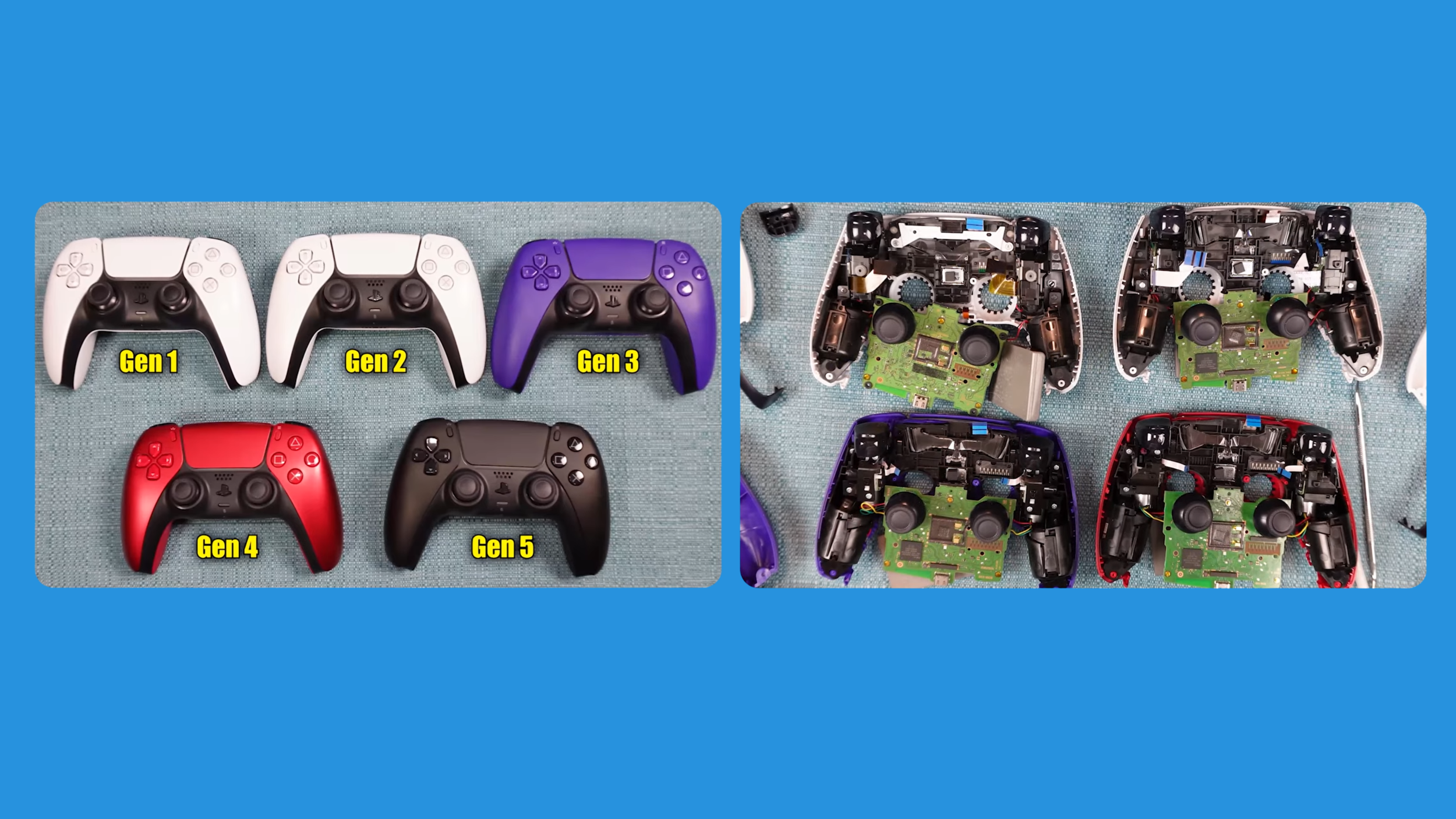

PS5 controllers have stayed visually consistent since launch. Same design, same layout, and nothing that really signals any major changes over time. If you’ve handled one, you’ve basically handled them all.
That consistency builds a habit. You expect the same parts, the same repair process, and the same results every time you open one up. There’s no reason to question it until something doesn’t line up the way you expect.
This One Looked Like a Normal Trigger Repair

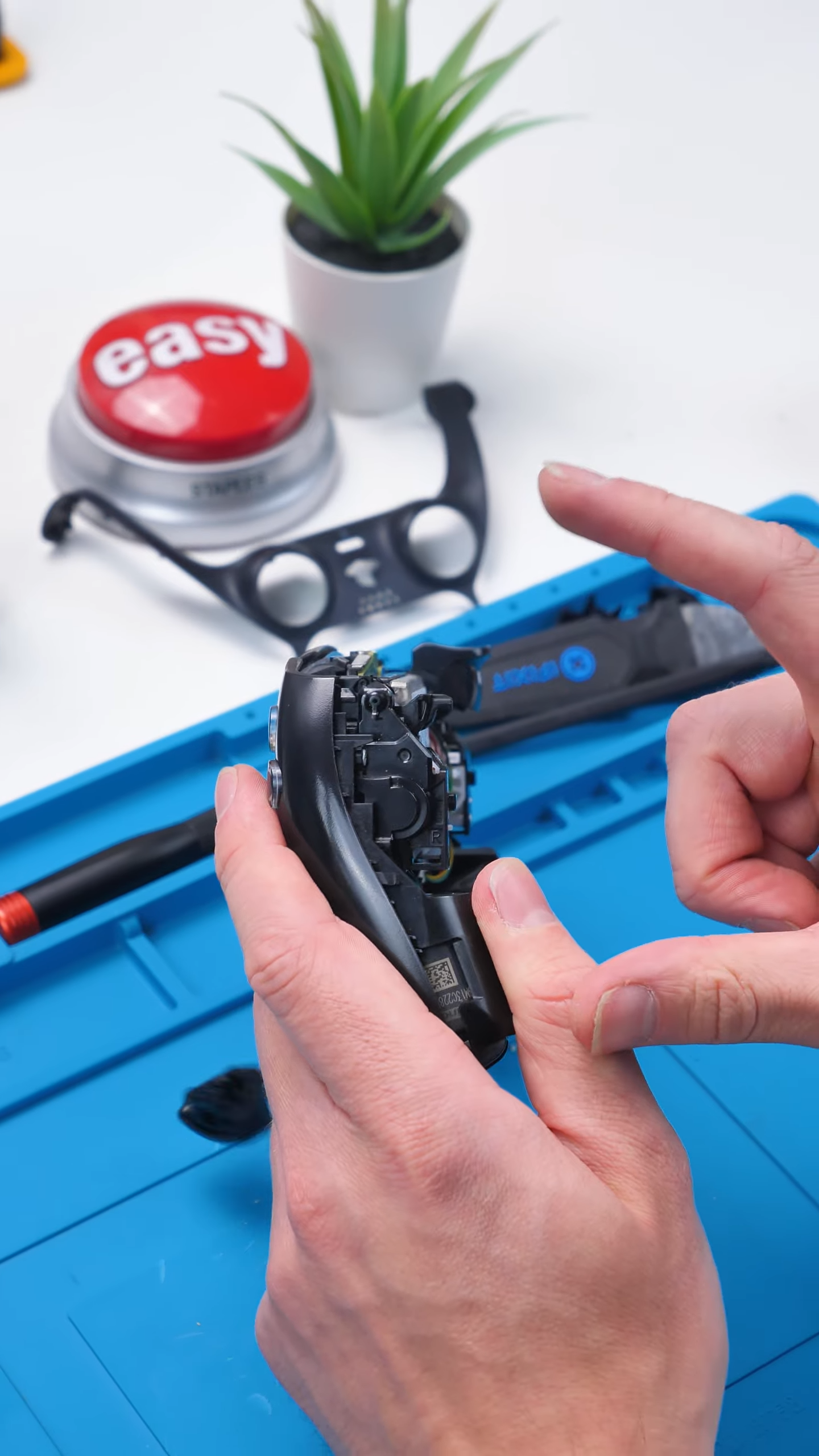

The issue here was straightforward. The trigger was completely unresponsive, no tension, no feedback, just a dead press. It is the kind of problem you usually fix by swapping out the trigger mechanism and putting everything back together.

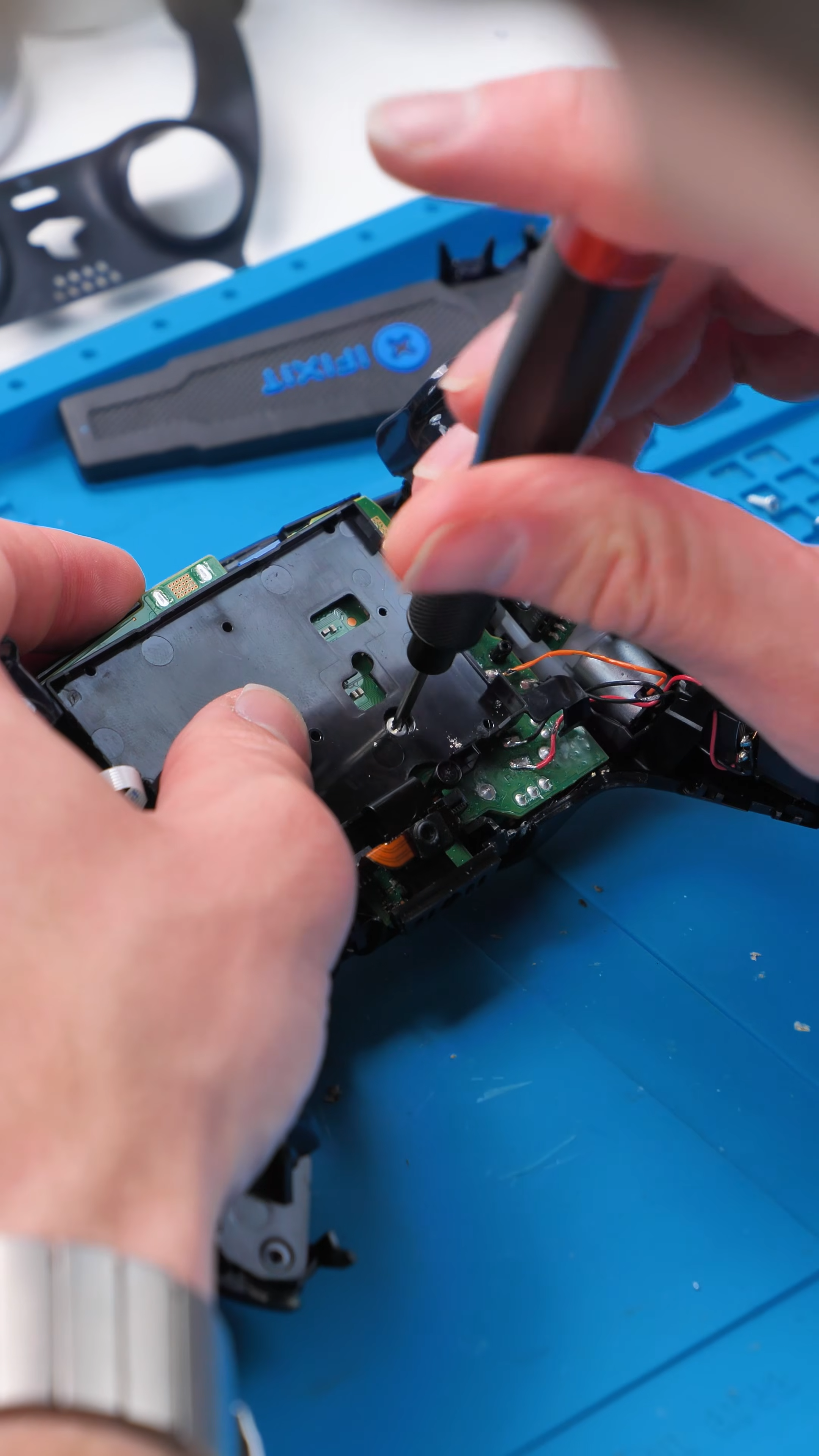

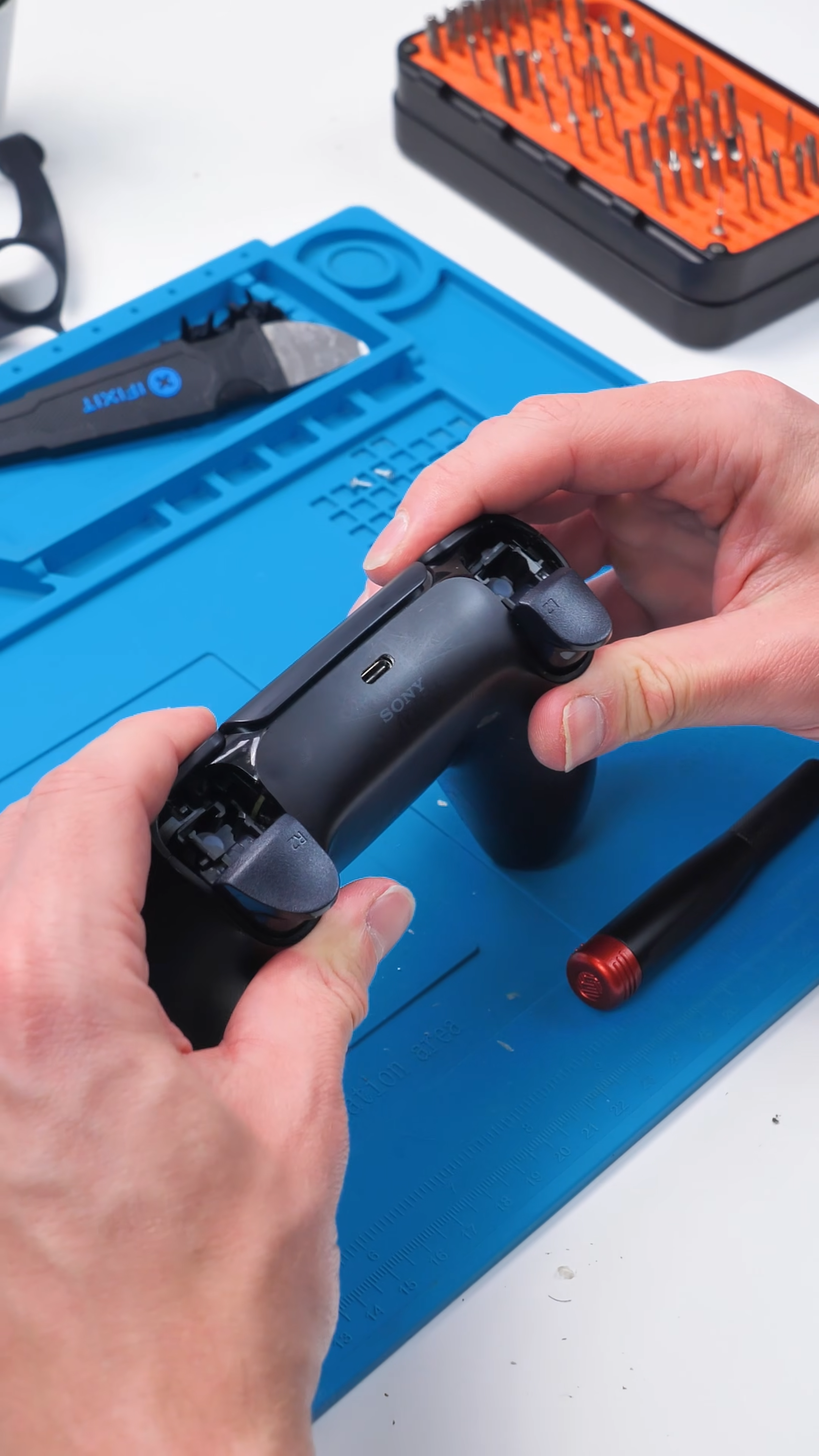

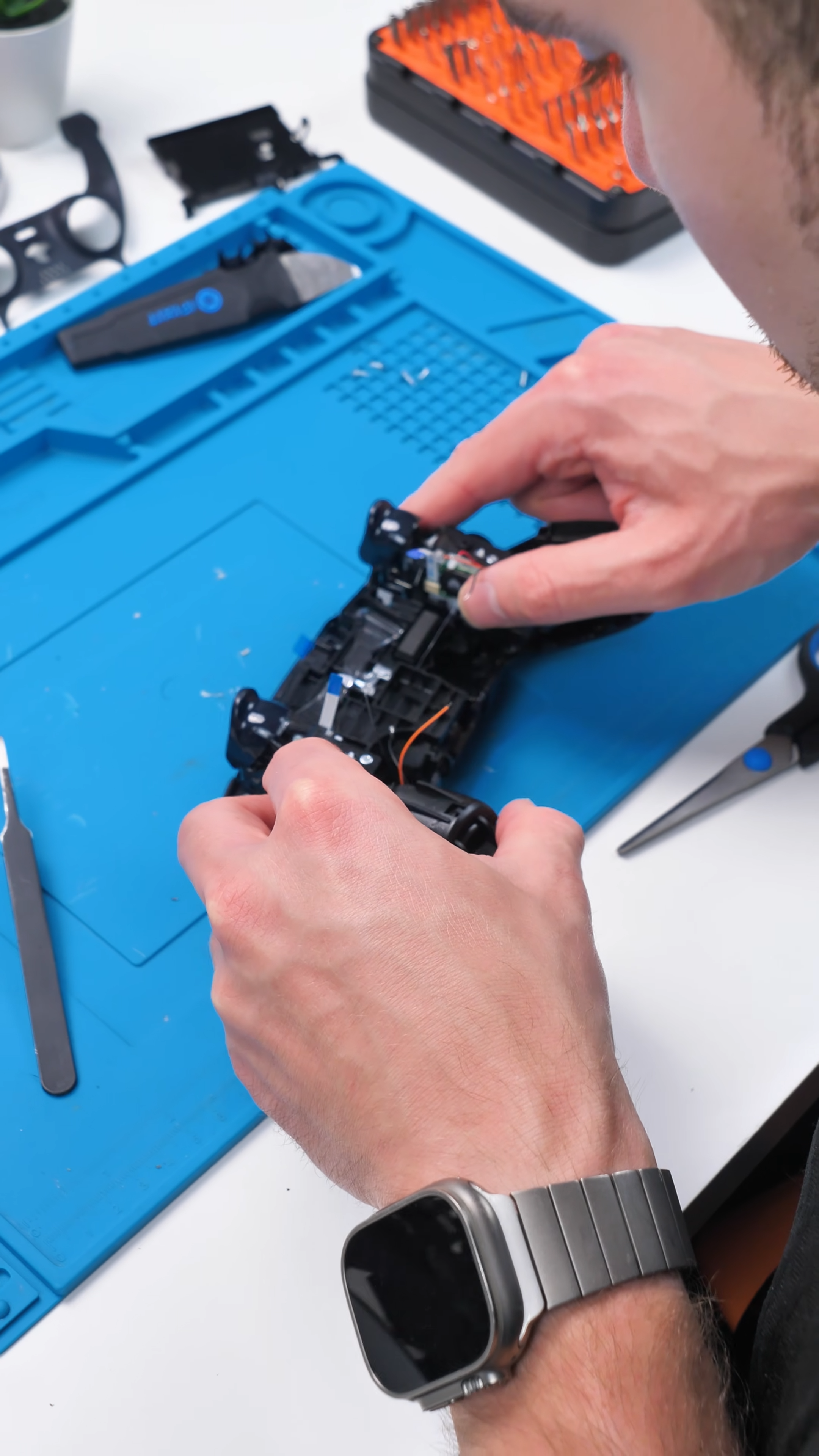

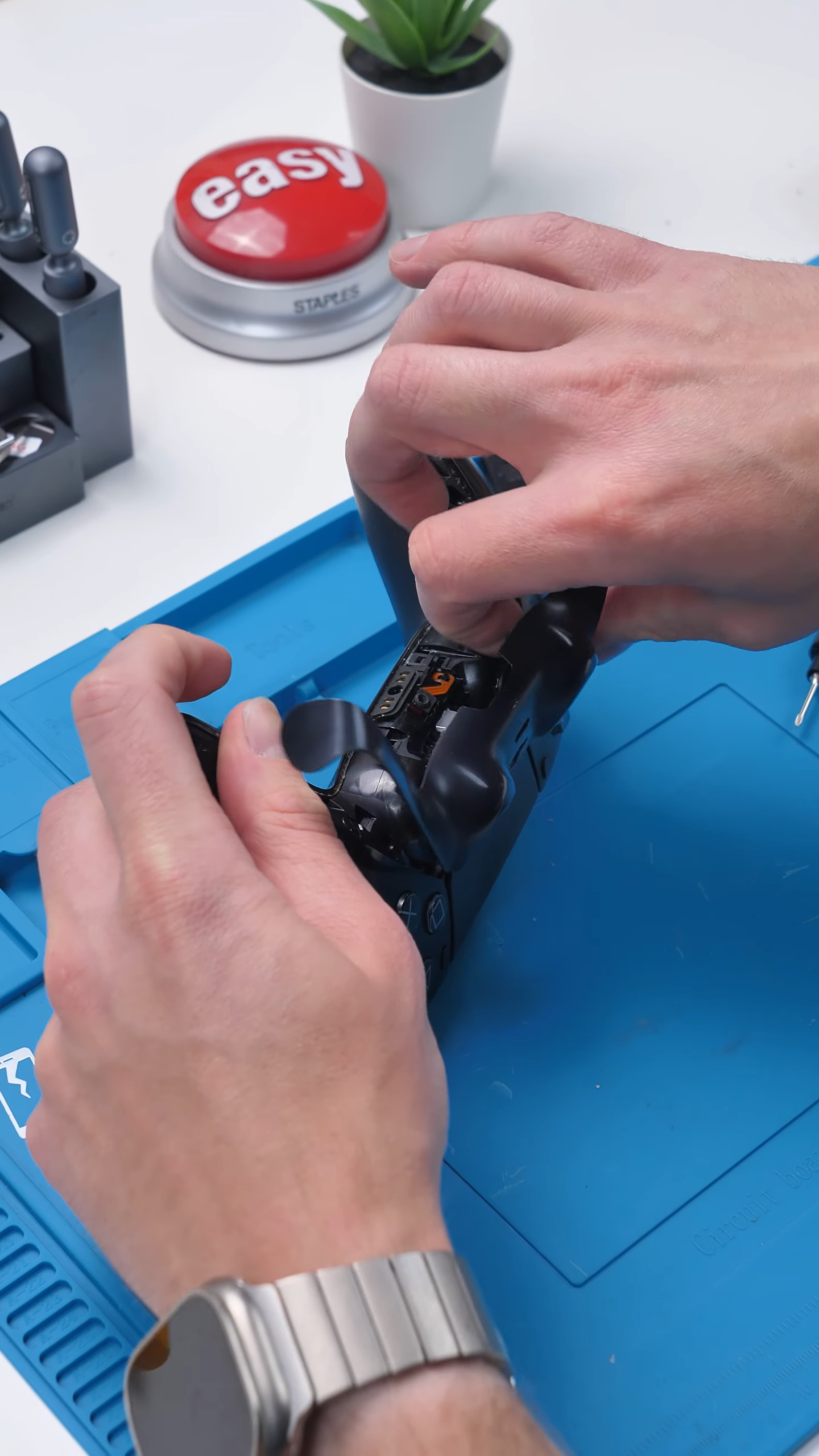

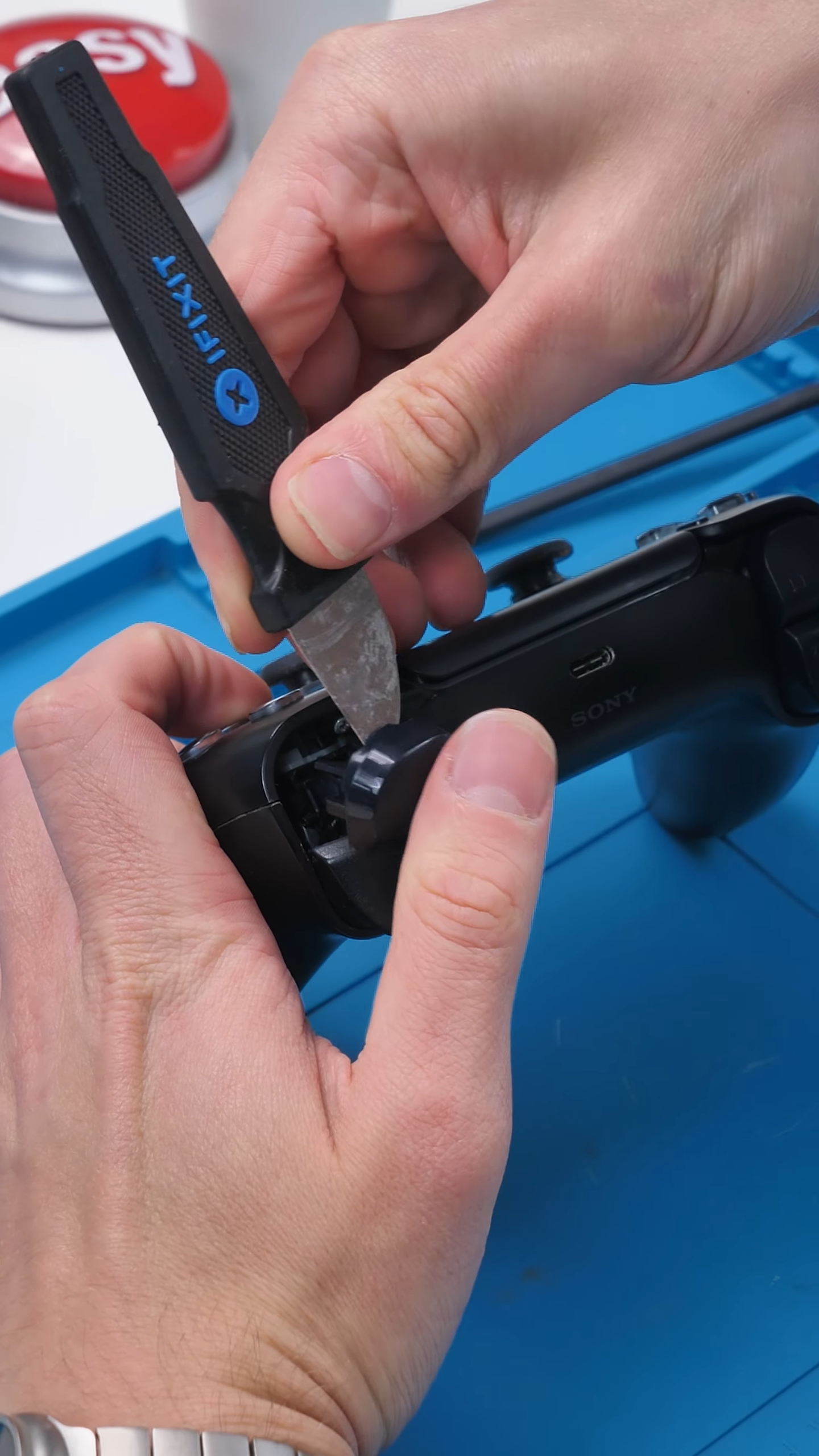

So the approach stays simple. Open the controller, isolate the trigger, replace the damaged part. That workflow has worked on plenty of controllers before, and there’s nothing about this one that suggests it should be any different.
Then You Realize What You’re Actually Working On

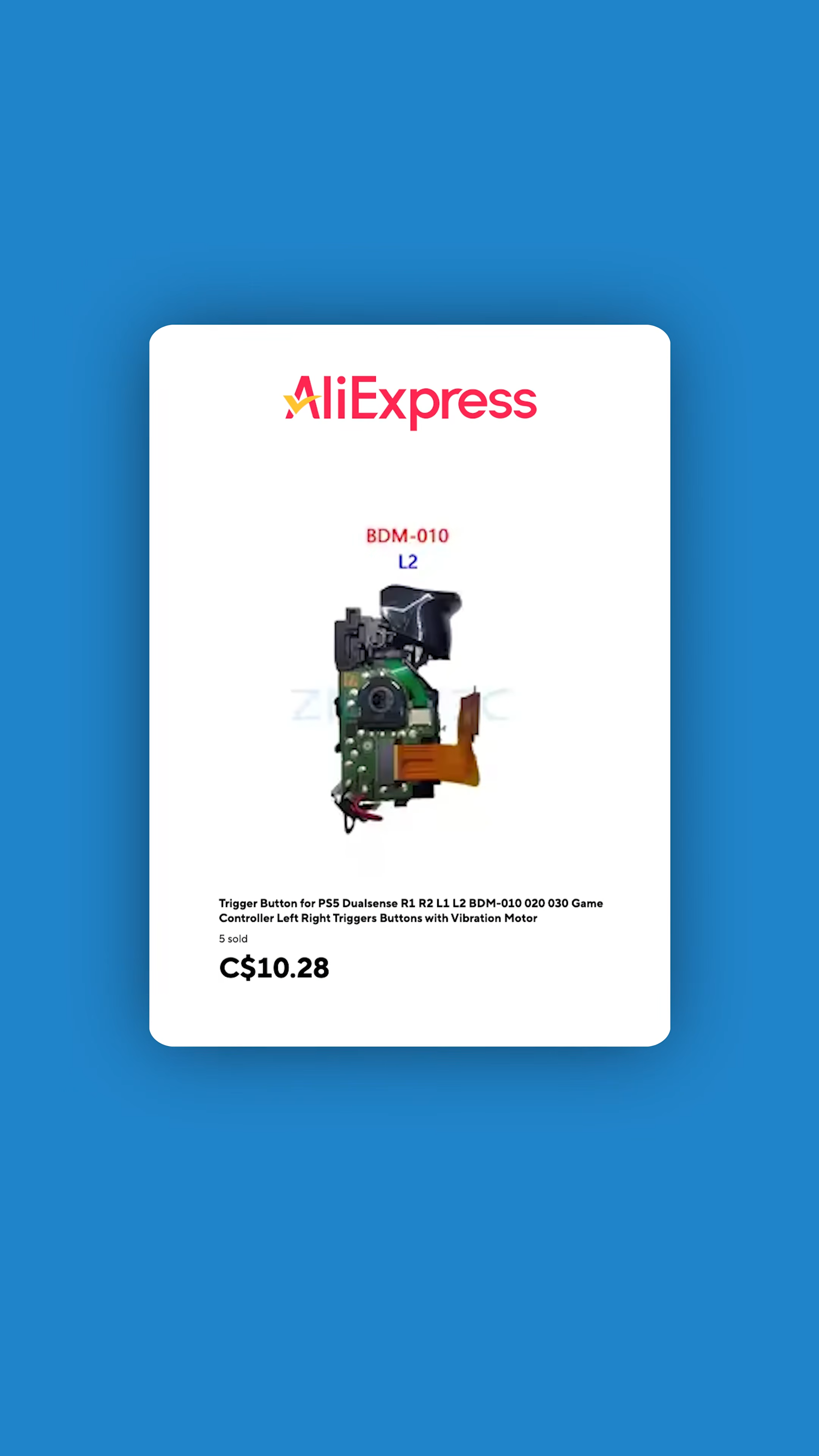

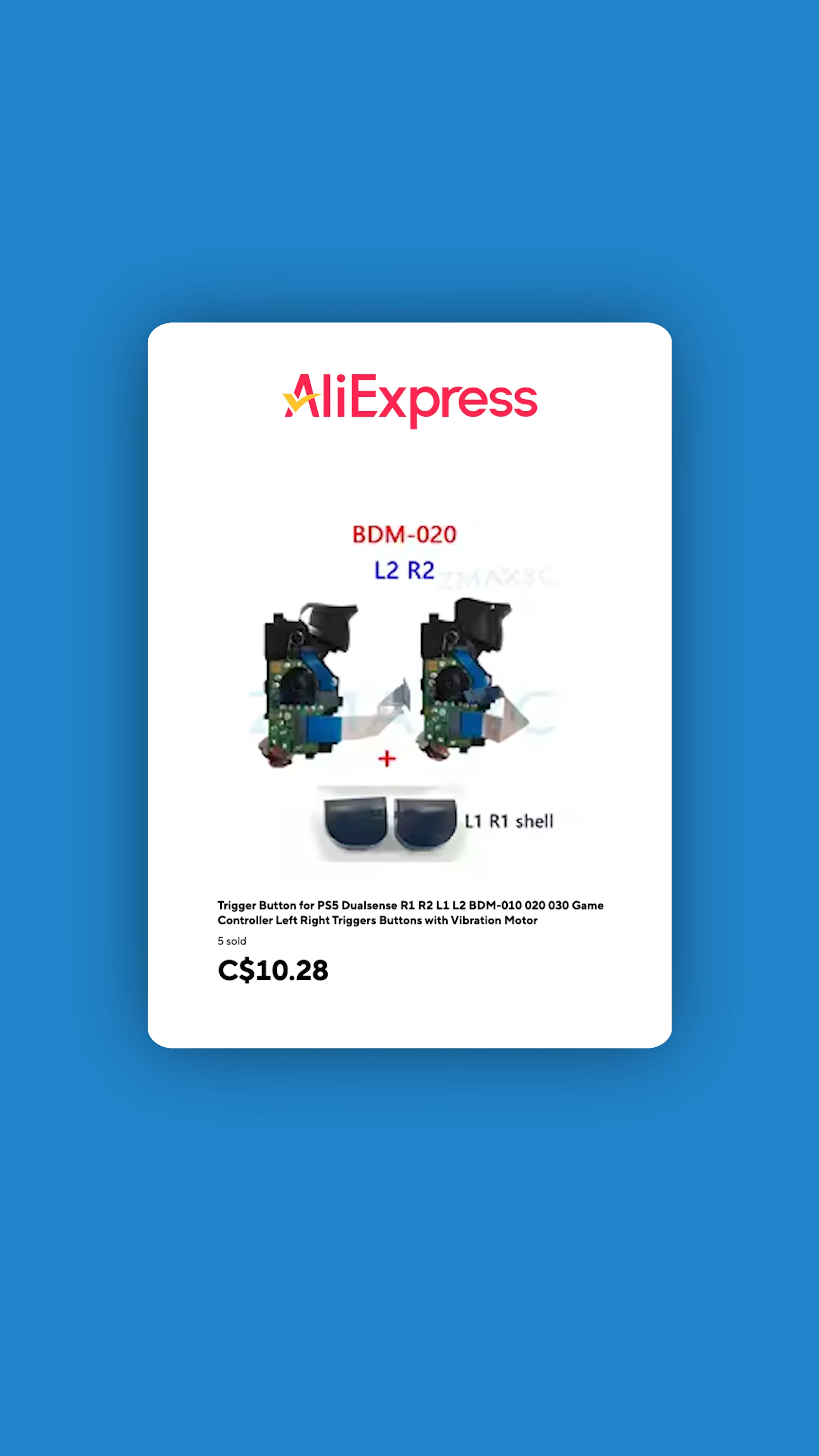

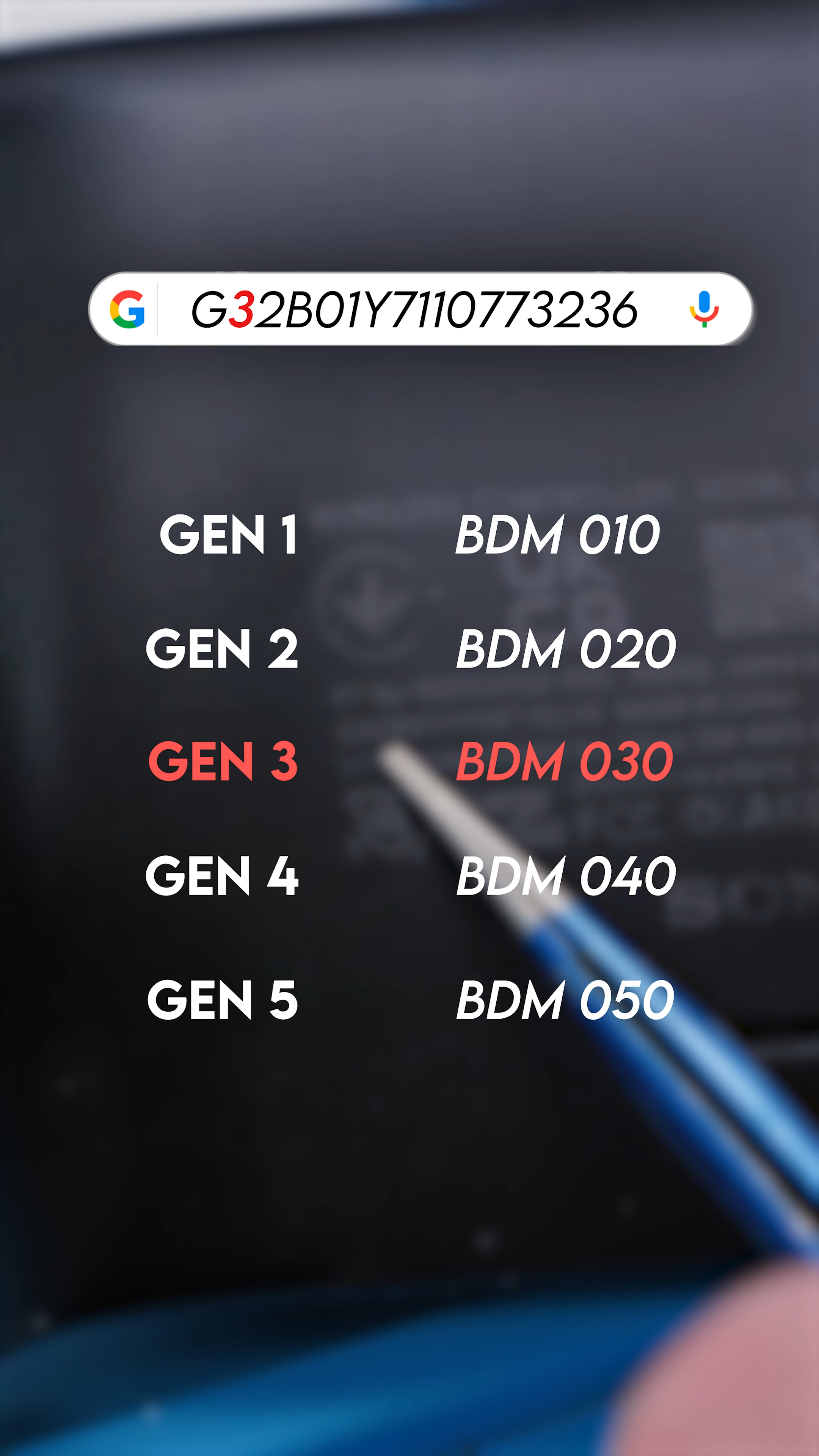

Once you get inside, the difference shows up. This is a BDM-030 controller, and like other internal revisions, it does not always use the same parts as older versions.

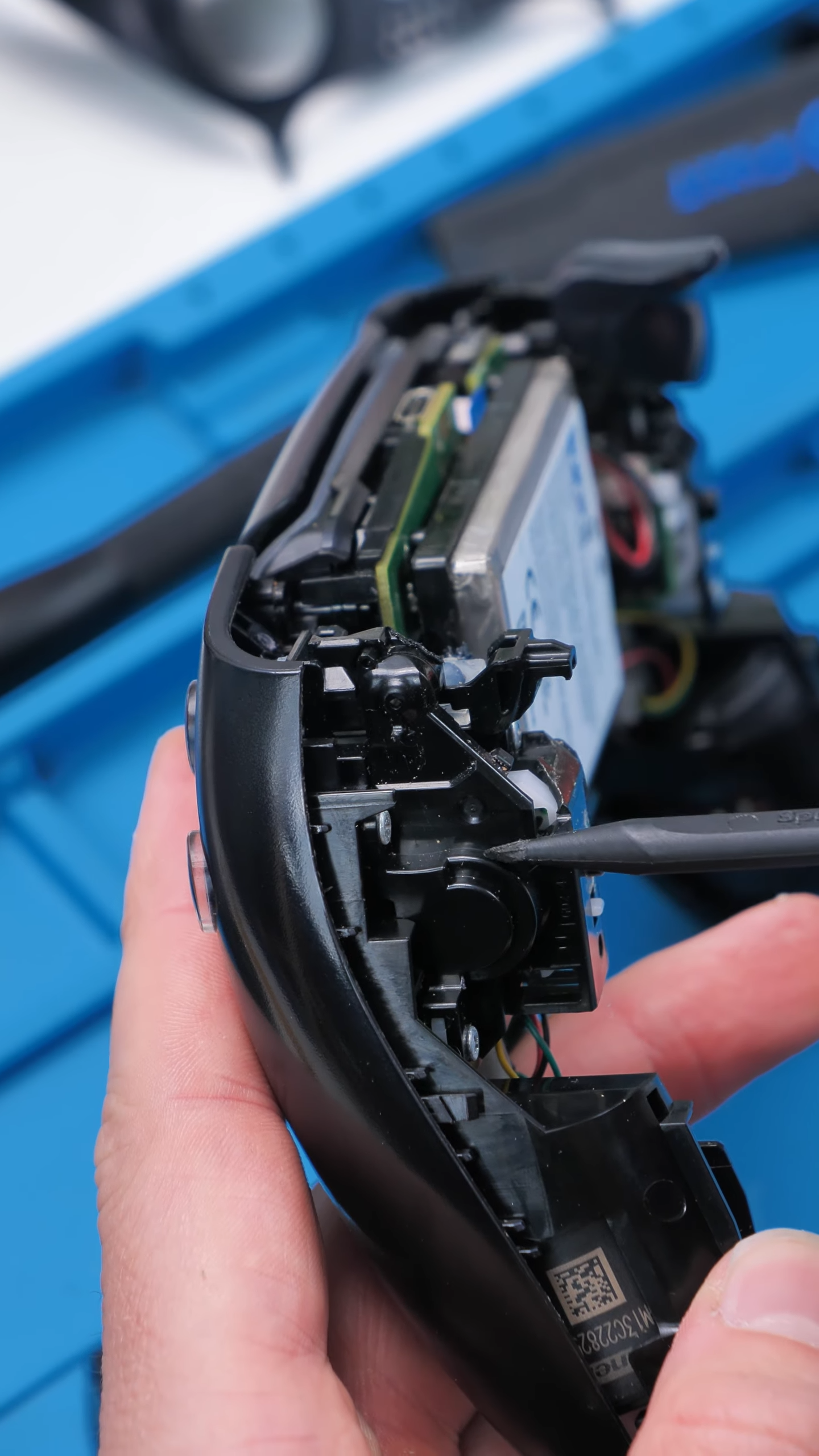

That is where things shift. Different models take different parts, and in this case, the trigger system is more integrated into the midframe. It no longer behaves like a simple standalone piece you can swap without affecting the rest of the assembly.
Where the Repair Starts to Shift

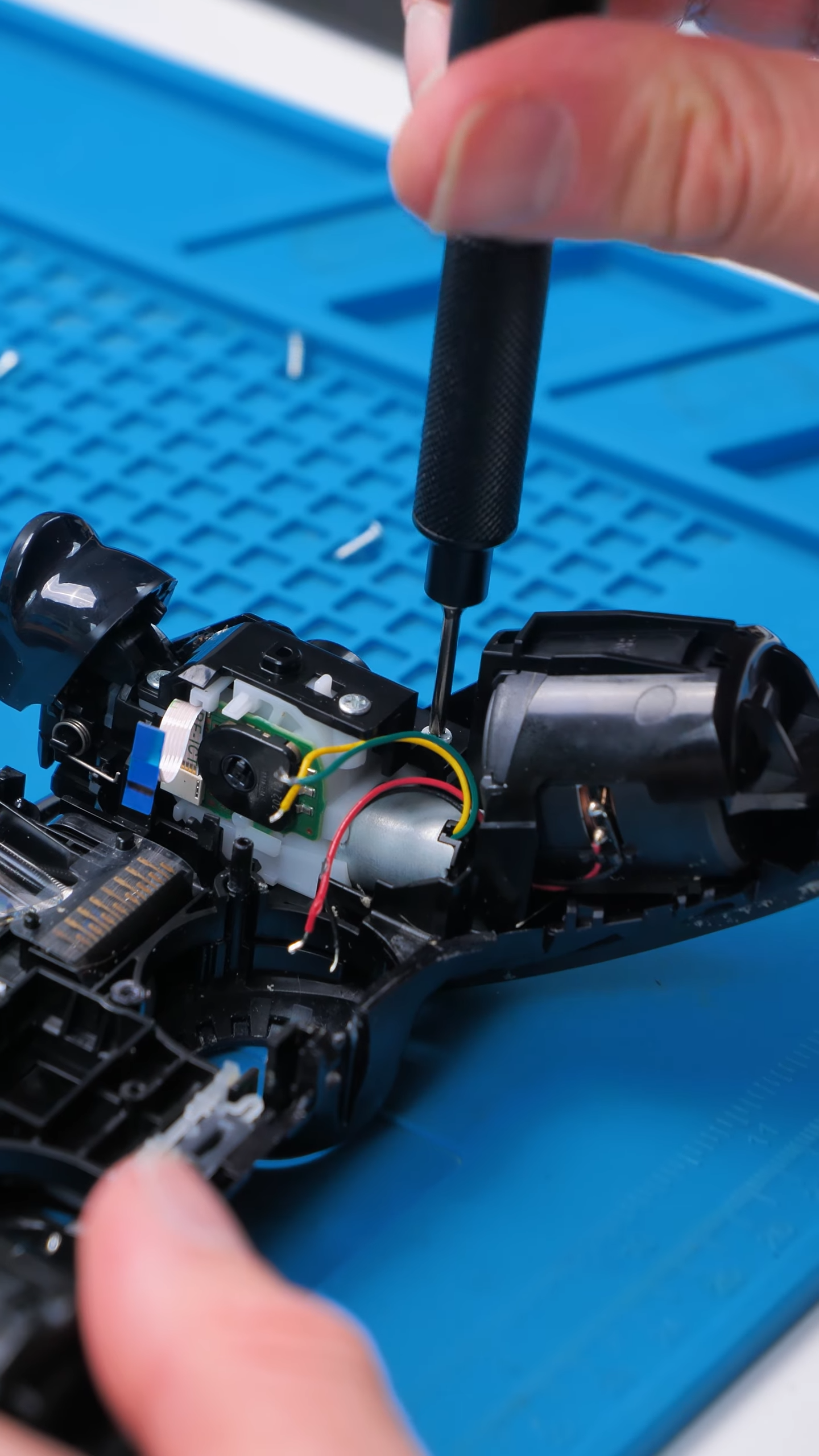

Sony quietly changed the trigger design on this revision, and that small shift is what throws the repair off. Trying to replace just the trigger on the BDM-030 introduces a different kind of problem. The parts go back together, but the alignment between the trigger, motor, and gears becomes much more sensitive.

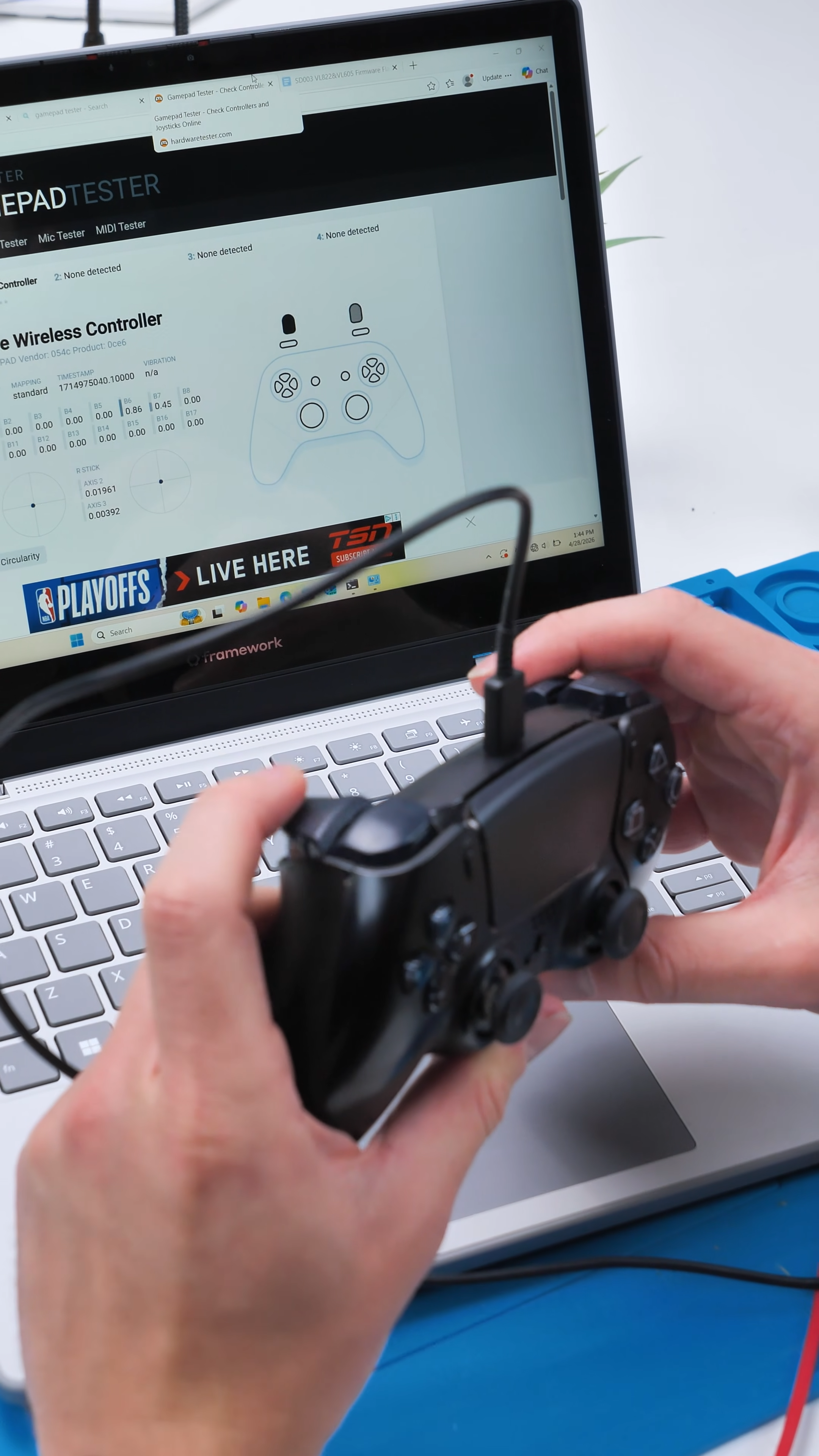

That is where things start to feel off. The trigger might work again, but the resistance or response is not quite right. It is functional, just not consistent with how it originally behaved.
Why Replacing the Full Assembly Works Better

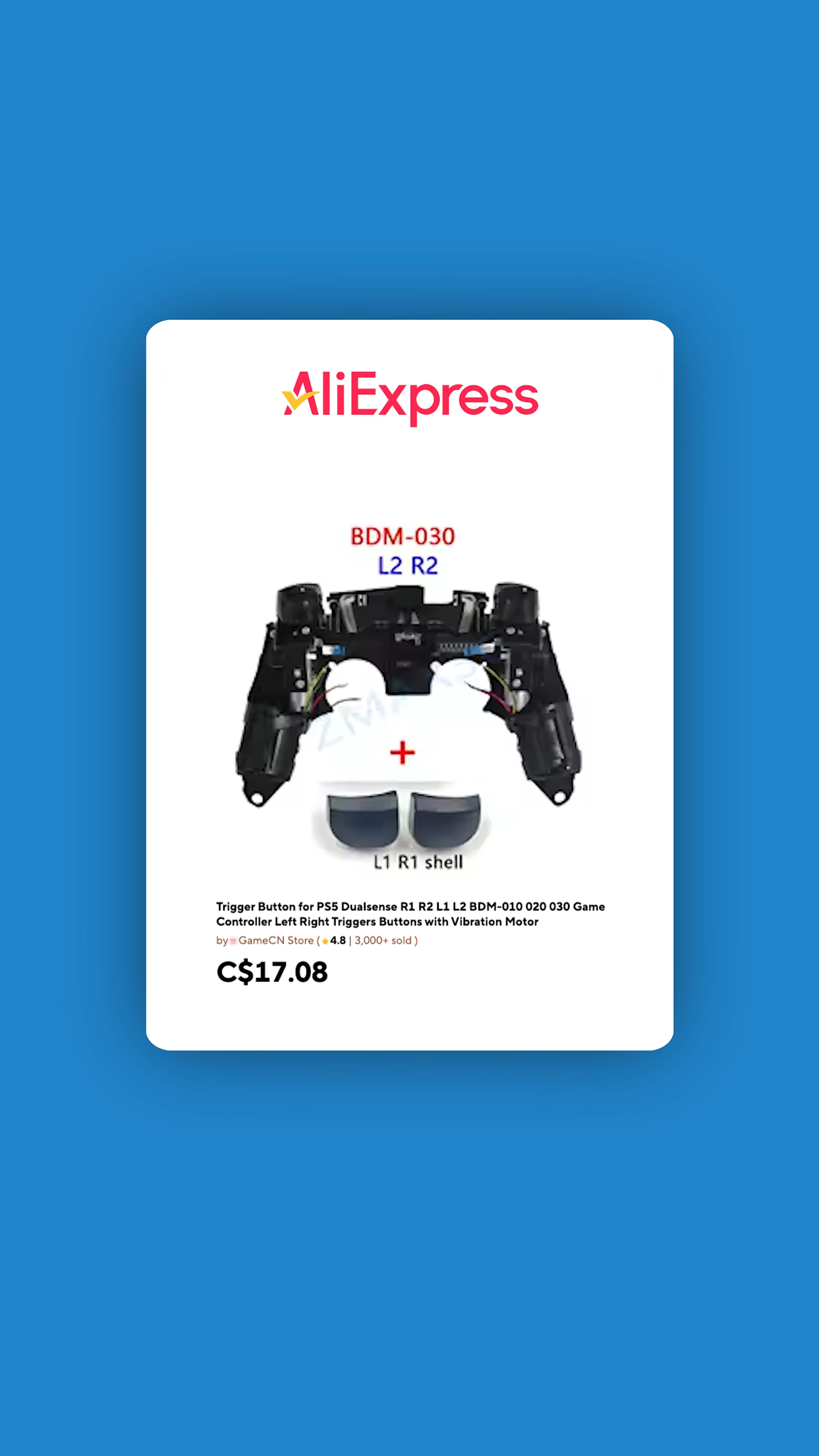

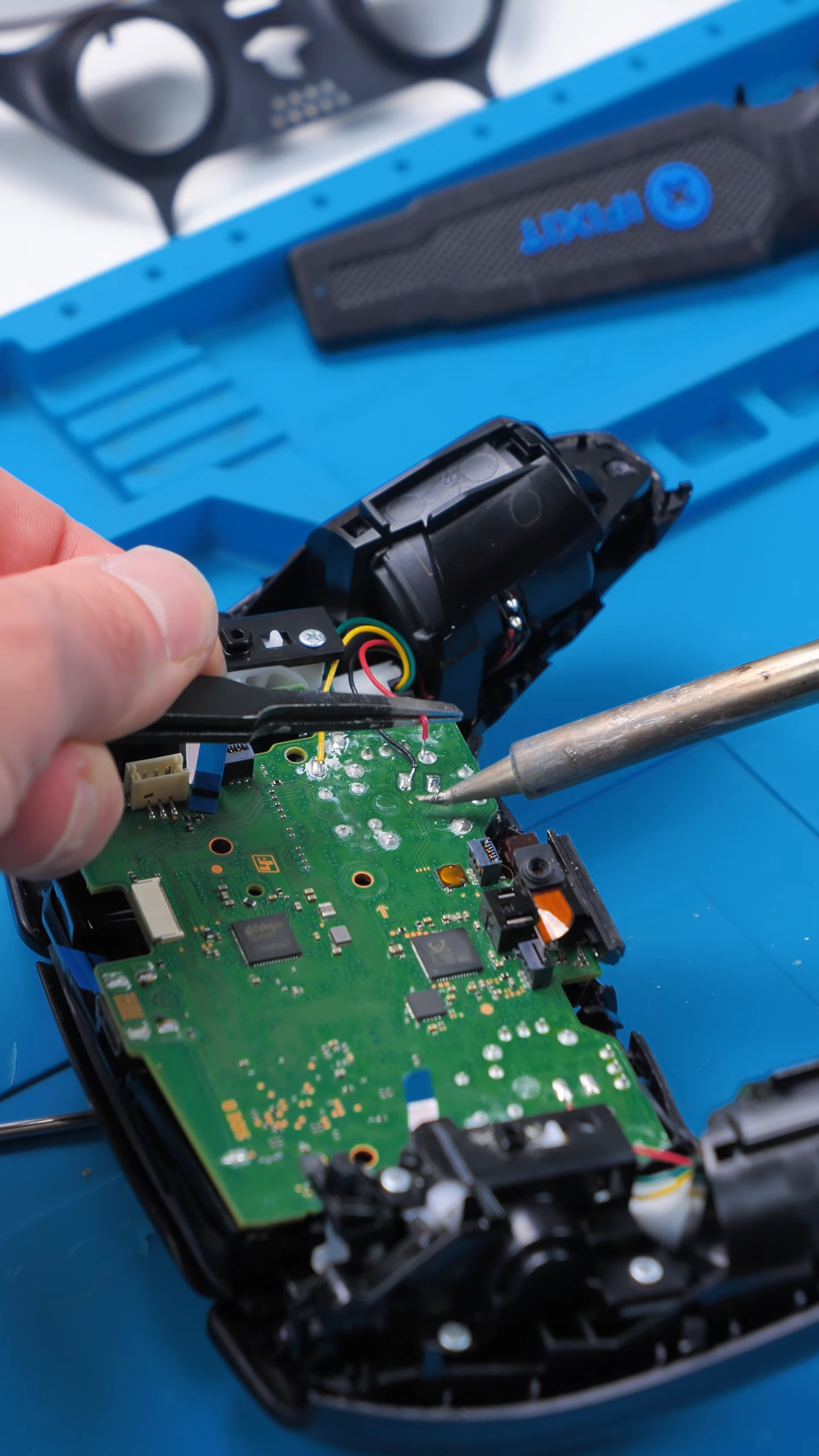

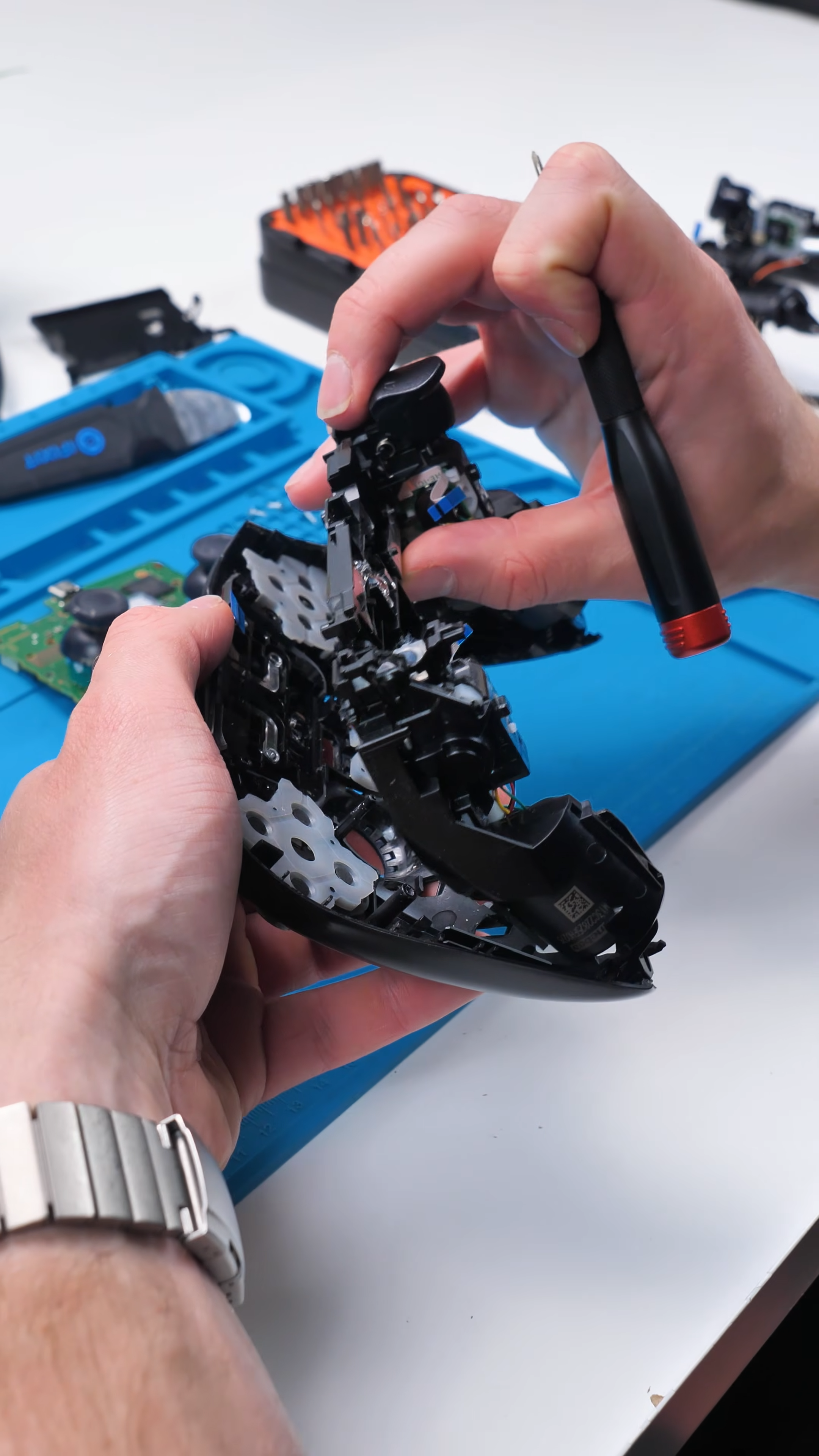

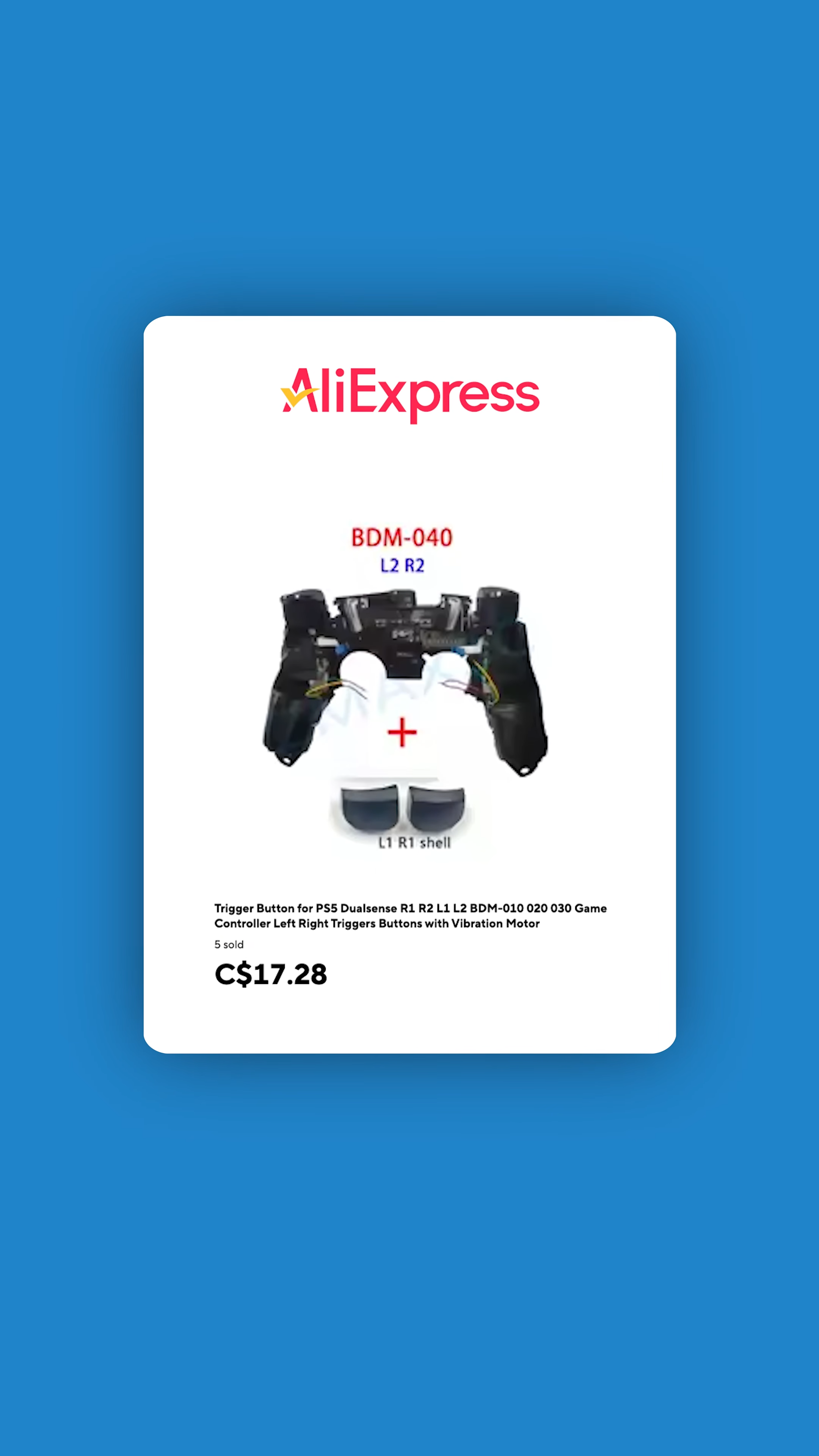

Most replacement parts come as a full trigger assembly attached to the midframe. That setup keeps the alignment intact instead of relying on you to rebuild it manually.
It is not about whether you can replace just the trigger. It is about consistency. Swapping the full assembly removes the small variables that usually lead to a repair that feels slightly off.
Final Thoughts
PS5 controllers may look identical, but the BDM-030 shows how much can change without you noticing. The difference only shows up once you are inside, and by then, your approach matters.

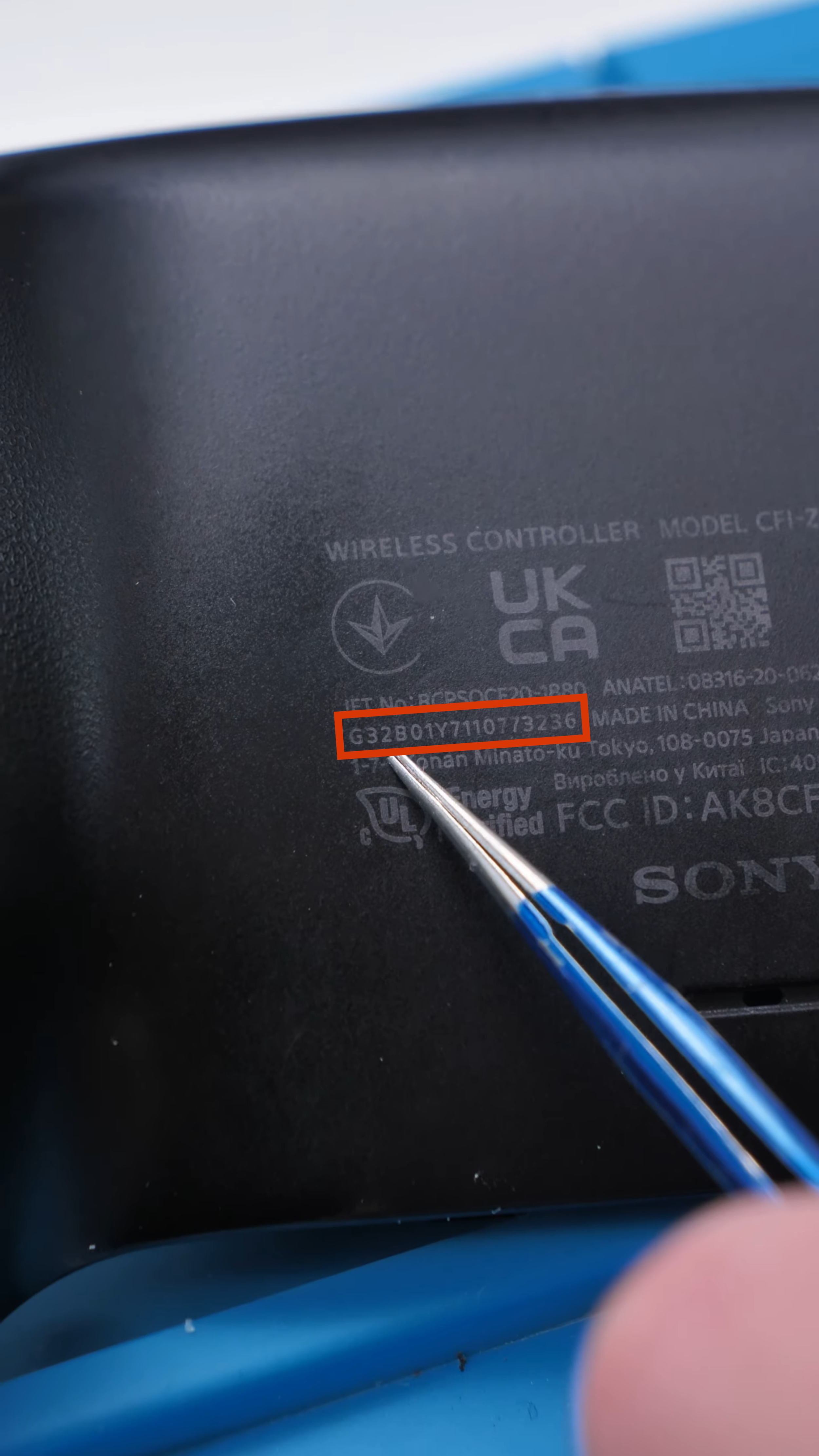

Knowing what model you are working on changes everything. I’ve had a repair come together perfectly on the outside and still feel wrong the moment I pressed the trigger. That is usually your sign you treated it like the wrong controller.
I guess even identical controllers have identity issues now.
See you in the next article!
