This Hidden iPhone 18 Pro Redesign Could Make Repairs Much Harder

The iPhone 18 Pro may look almost identical to the current model, but a massive Apple leak suggests something much bigger is changing underneath. The leaked files reportedly include durability testing, updates to the Dynamic Island and Face ID sensors, improved cameras, a larger battery, and a redesigned cooling system.

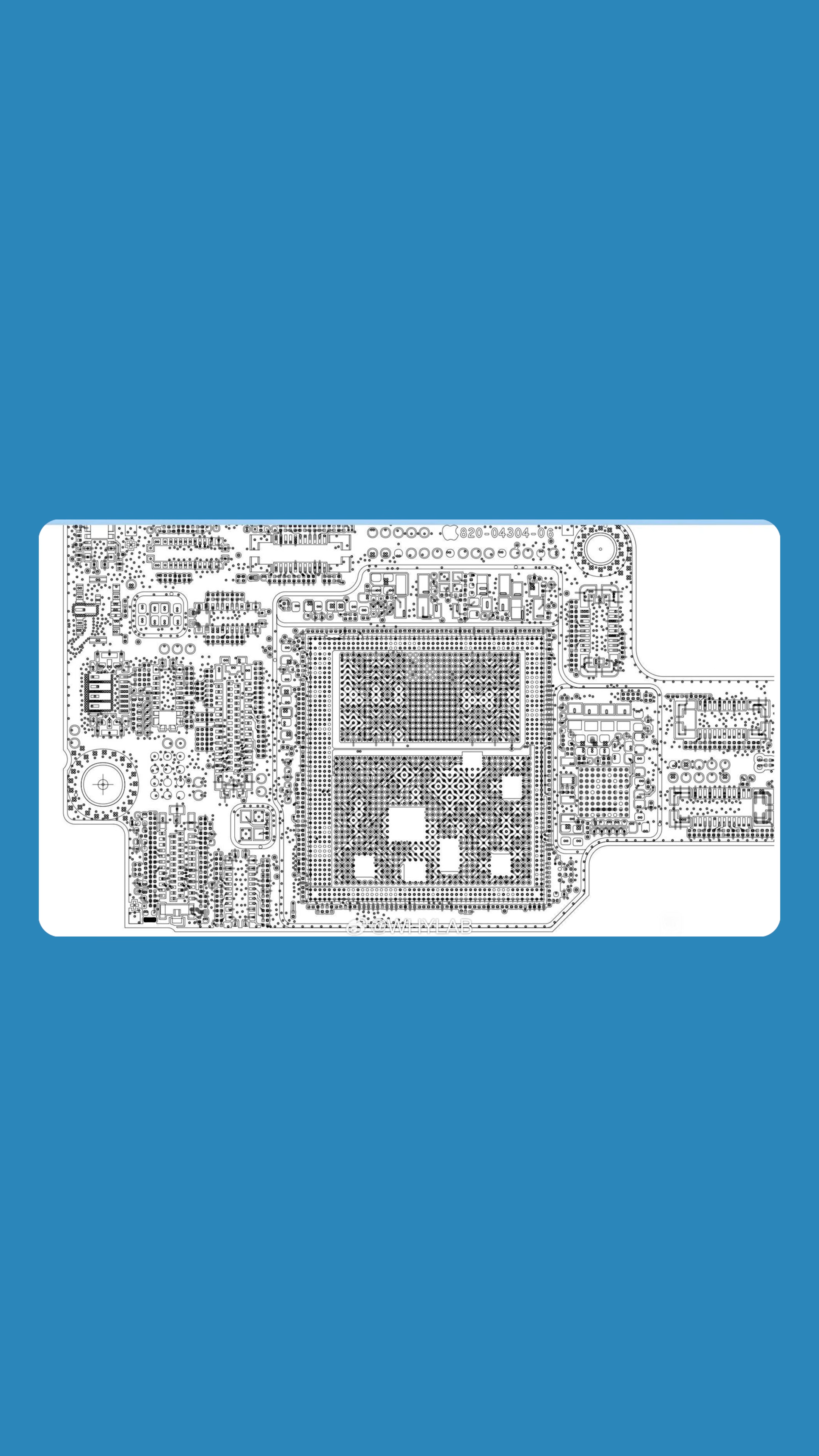

Those are all interesting, but one leaked schematic may have revealed the change that matters most.

The Biggest Change Is Hidden Inside

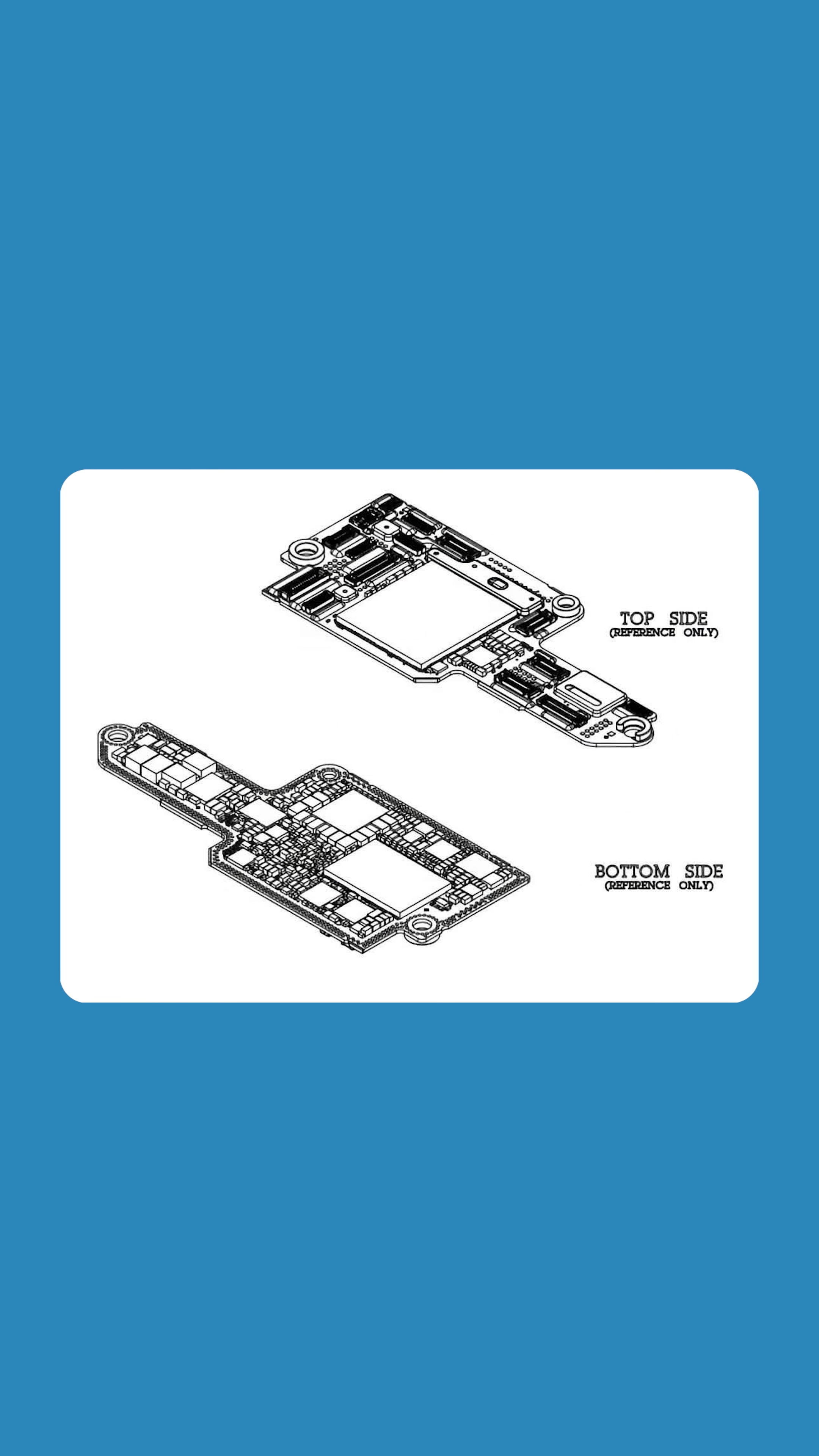

Apple is reportedly redesigning the iPhone 18 Pro’s logic board by moving the main processor closer to the outside of the board.

That would place the chip closer to the phone’s cooling system, giving heat a more direct path away from the processor. In theory, that could improve sustained performance and reduce overheating.

But Apple may be making another change at the same time.

Apple May Be Burying the Storage Chip

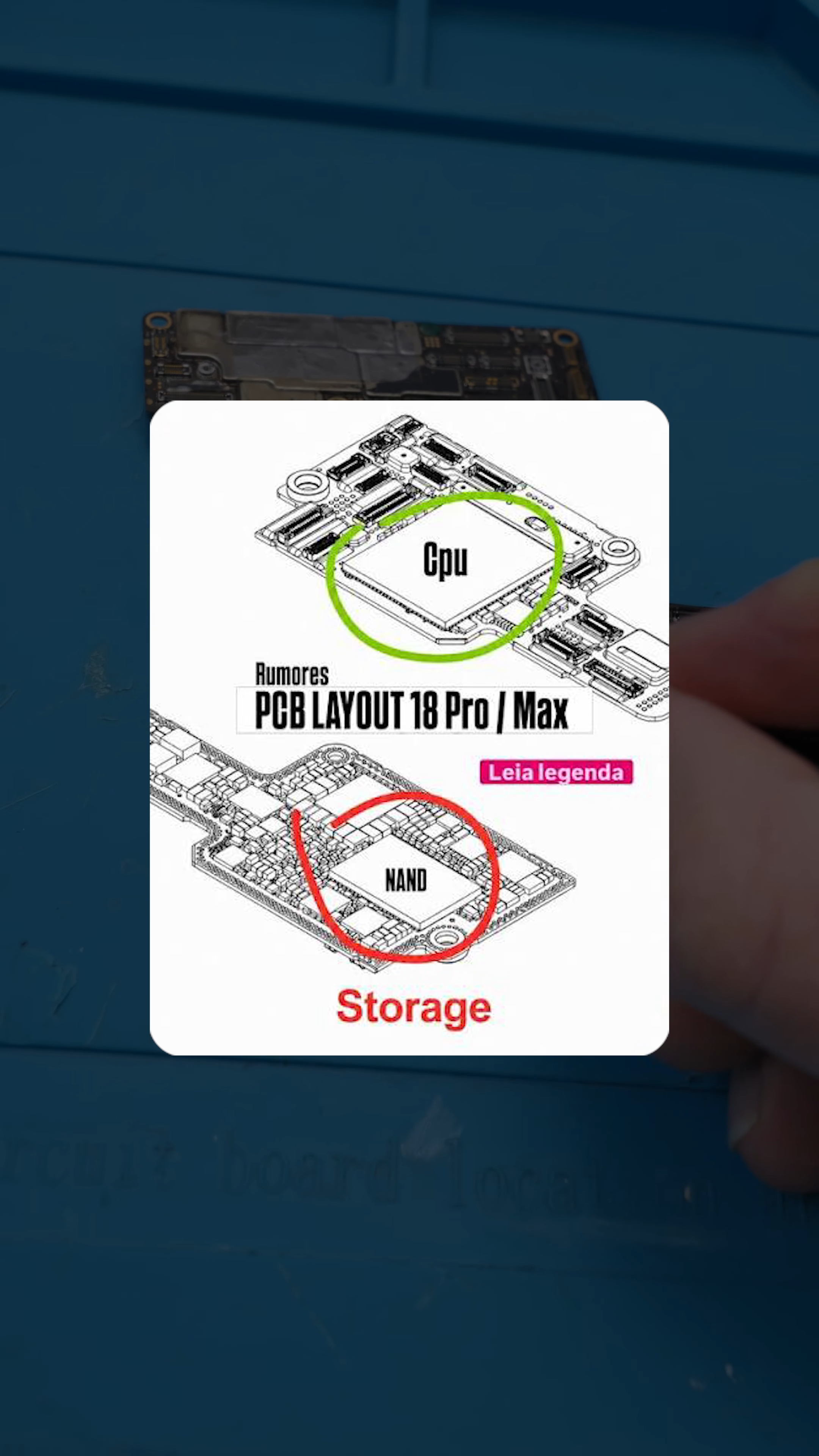

The leaked schematics suggest the NAND storage chip could be moved inside the stacked logic board.

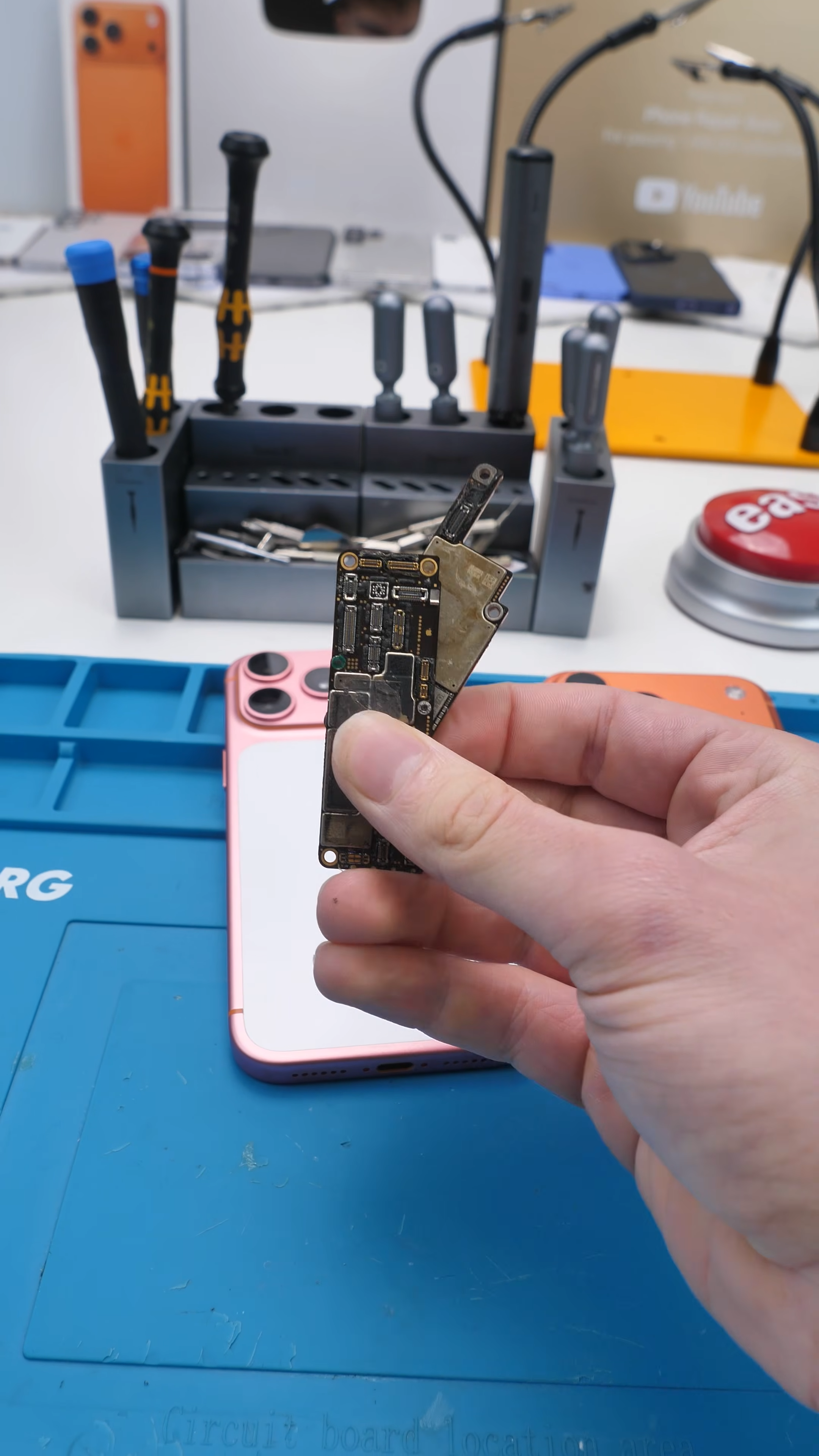

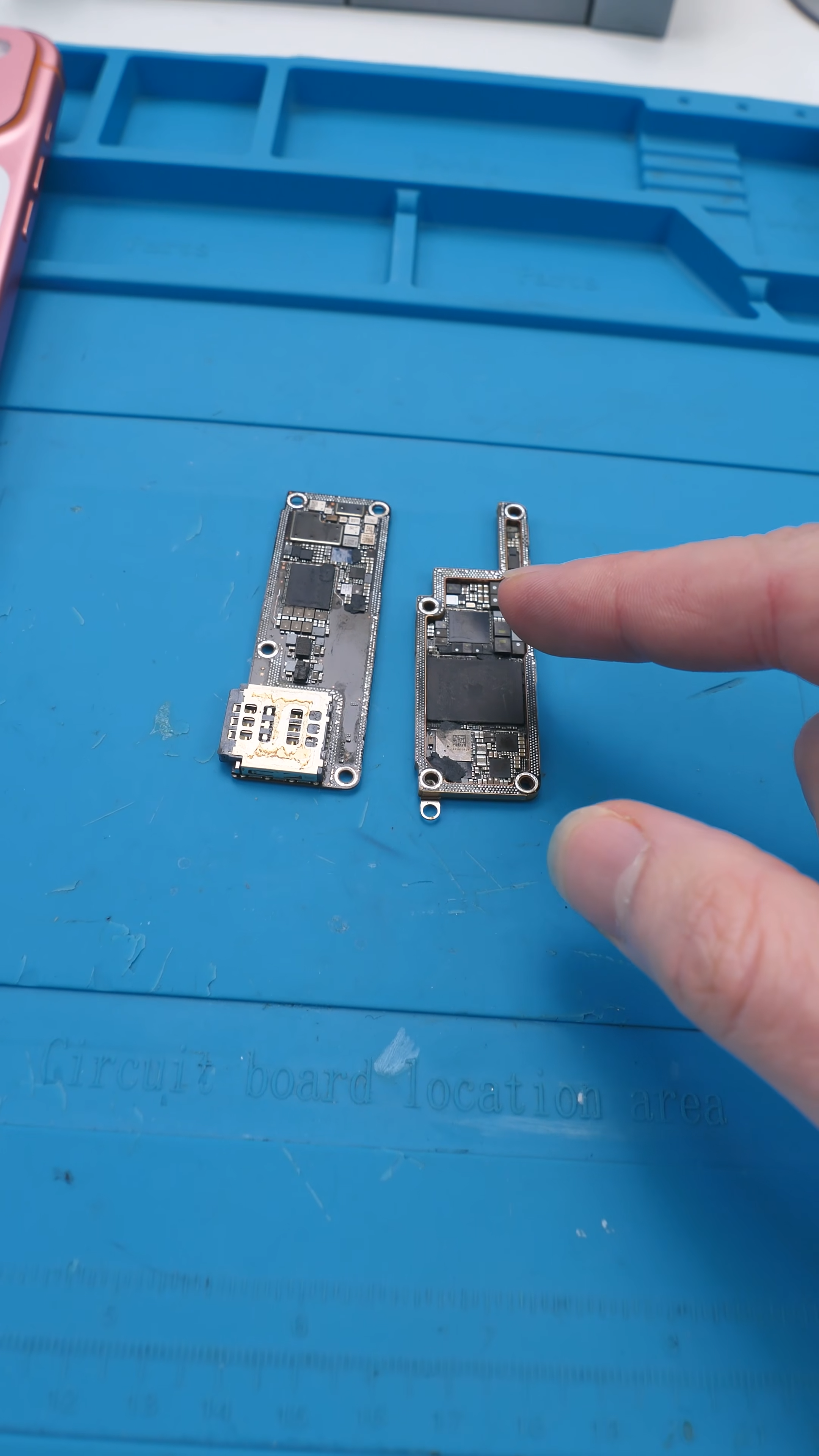

Storage upgrades already require advanced microsoldering, but technicians can currently reach the chip without completely separating the board. If the new layout is real, the entire logic board may need to be split apart before the storage can even be accessed.

That would add more heat, more labor, and significantly more risk to an already difficult job.

Final Thoughts

Apple still has not confirmed any of this, but if these schematics are real, storage upgrades on the iPhone 18 Pro could go from difficult to completely ridiculous.

So is this actually a smarter internal design, or did Apple just make another repair harder than it needs to be?

Either way, I will still end up tearing one apart to see just how bad it really is.

See you in the next article!
